Jepson Bolton's International Catalogue

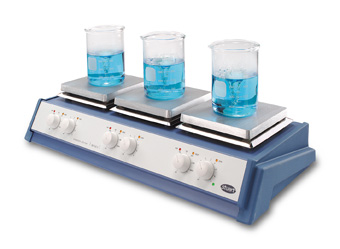

Stirrer, magnetic, 3 position with hotplate,

  • SB162-3

  • Three independently controlled stirring/heating positions
  • Separate "Hot" warning lights for each plate
  • Powerful magnets for strong magnetic coupling

    A space saving and economical unit with 3 independent heating/stirring positions in a footprint only 600 x 270mm. Easily accommodates 3 x 2 litre beakers.

    Unit only requires one power point and is ideal for quality control applications where multiple samples require simultaneous heating and stirring, under the same conditions.

    A "Hot" warning light for each plate will flash whenever its temperature is above 50°C and will operate even when the hotplate is turned off and connected to the mains. The top plates are a robust aluminium/ silicon alloy, providing even plate temperature. Powerful magnets and motor give stirring speed up to 1500rpm and volumes up to 15 litres, based on water contained on a 20 litre glass bottom boiling flask.

    Supplied complete with 3 x 25mm PTFE coated stir bars.


  • Technical specification

    Plate material                       Al/Si alloy
    Individual plate dimensions, mm      160 x 160
    Heater power, W                      3 x 700
    Maximum plate temperature. °C        325
    Speed range, rpm                     100 to 1500
    Overall dimensions (w x d x h), mm   600 x 270 x 110
    Net weight, kg                       11
    Electricity supply                   230V, 50Hz, 2250W


  • Ordering Information

    Model     Description                                  Cost
    SB162-3   Stirrer, magnetic, 3 position with heating   - £675.25
    SRC       Retort rod, 600mm plus bracket               - £37.00


    * To request further information please Email enquiry@jepbol.com
