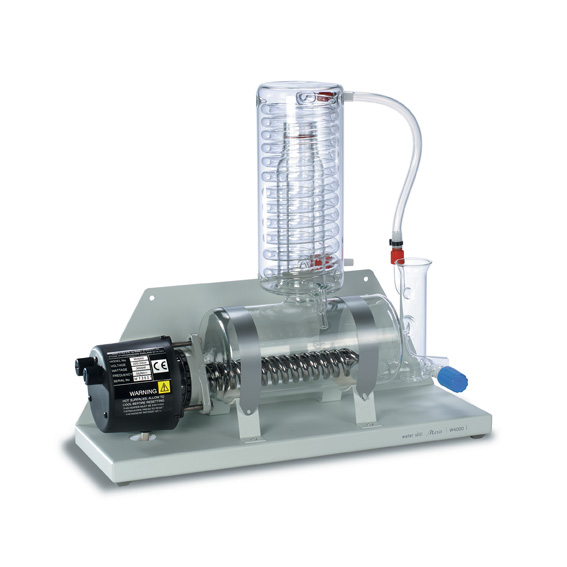

  • Water still, Merit, W4000

  • Economical price
  • Glass construction with long life metal heating element
  • Two independent safety thermostats
  • Wall mountable

    The Merit is the ideal choice for budget conscious laboratories that can't afford to compromise on quality. It combines economy and high performance with a host of other features which comparable stills cannot match.

    Built in acid addition funnel and drain stopcock allow easy descaling without dismantling the glassware. The unique condenser design ensures that the droplets of distilled water remain in contact with the cooling coil for the longest possible time producing cold distilled water and pre-heating the boiler feed to increase efficiency. Screwthreads are incorporated on all water connections so hoses can be fitted and removed easily and safely without risk of breakage.

    Safety features include two independent safety thermostats to prevent over heating in the event of failure of the water supply. The stand is pre-drilled to facilitate wall mounting.

  • Technical Specification

    Output                      4 litres/hr, single distilled
    pH                          5.0 - 6.5
    Conductivity, µScm-1        3.0 - 4.0
    Resistivity, mOhm-cm        0.25 - 0.3
    Temperature                 25 - 35°C
    Pyrogen content *           Pyrogen free
    Water supply                1 litre/min
                                3 - 100psi
    Electricity supply          220 or 240V, 50-60Hz, single phase
    Power requirement           3kW
    Dimensions, (w x d x h)     500 x 150 x 450mm
    * care is required to produce pyrogen free water and the output should be tested before use.
  • Ordering information

    table test
    Merit water still, 240V
    Merit water still, 220V

    * To request further information please Email
